CD3000S 3PH
Technical Specification
- Voltage power supply: 24V min, 480V Max, 600V on request
- Input Signal: SSR (OFF state <1Vdc ON = 4÷30 Vdc) firing.
- Firing: Zero crossing ZC.
- Auxiliary Voltage Supply: 10Va power consumption.
- Fan Voltage: 230V ± 15%.
- Approvals:Comply with EMC; cULus available as an option.
- Mounting: Din rail mounting up to 90A.
- Operating Temperature: 0÷40° up to 90A included (for higher temperature see the derating curve)
General Details
CD3000S 3PH
From 15A to 90A

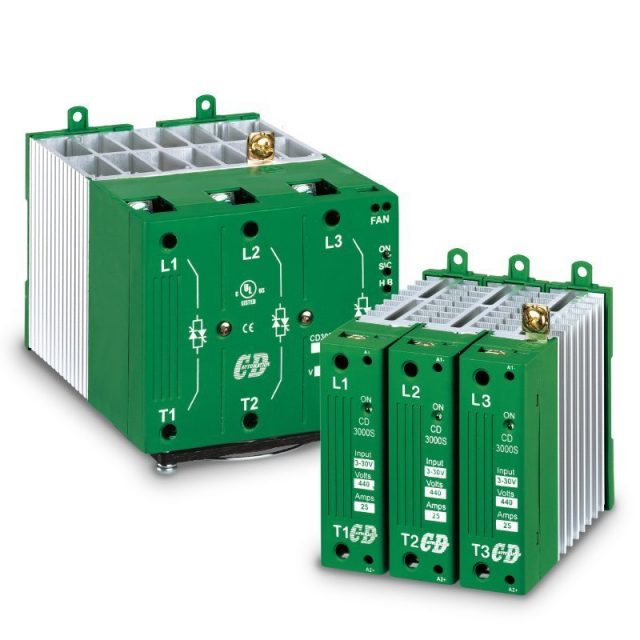

CD3000S 3PH is the three-phase version of our low cost family of solid state relays designed to replace the now obsolete contactors.
General description
- Up to 90A.
- Applicable for resistive loads and infrared lamp.
- Fully isolated from power.
- Applicable for resistive loads.
- Zero crossing firing.
- Logic input signal SSR.
- Constant current drain.
- Side by side packaging.
- Special design for heatsink with high dissipation
- IP20 protection
- Comply with EMC specification CE and cUL
Code / Size

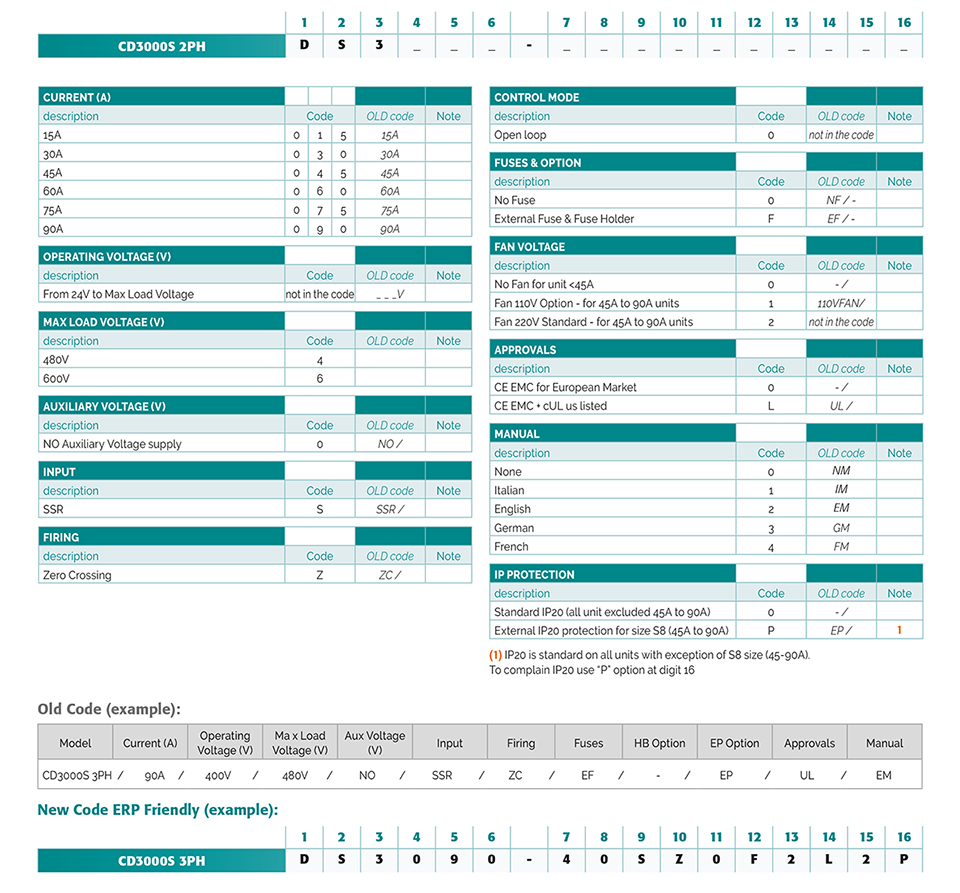

CD3000S 3PH – Order Code

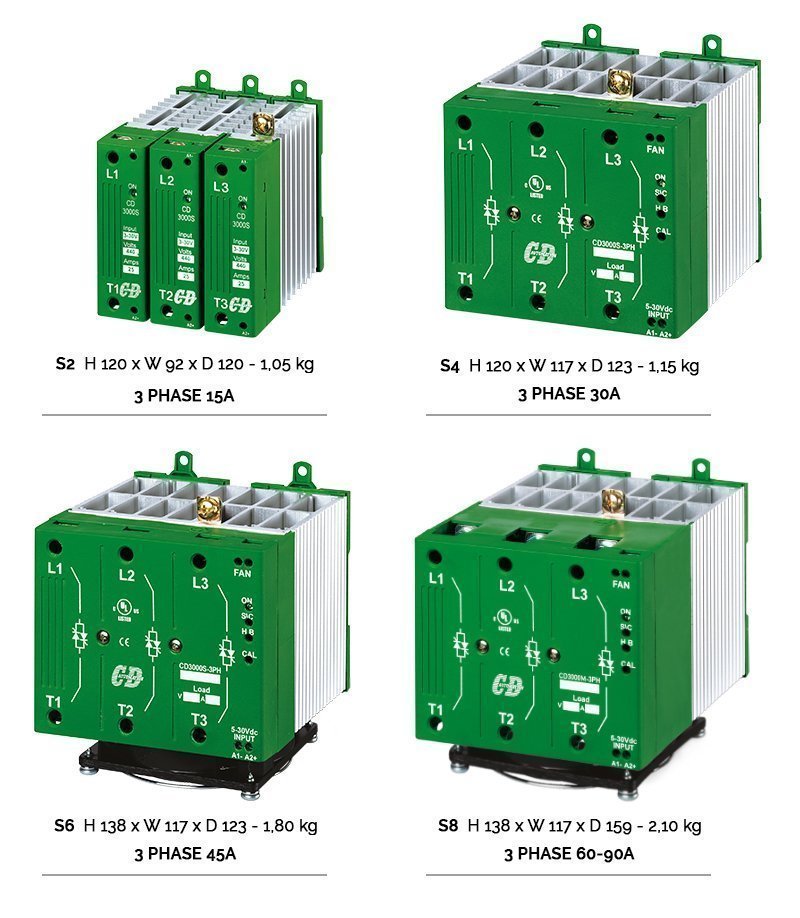

CD3000S 3PH – Size & Dimensions
Documentation
CD3000 S 3PH – Documentation
Catalog
