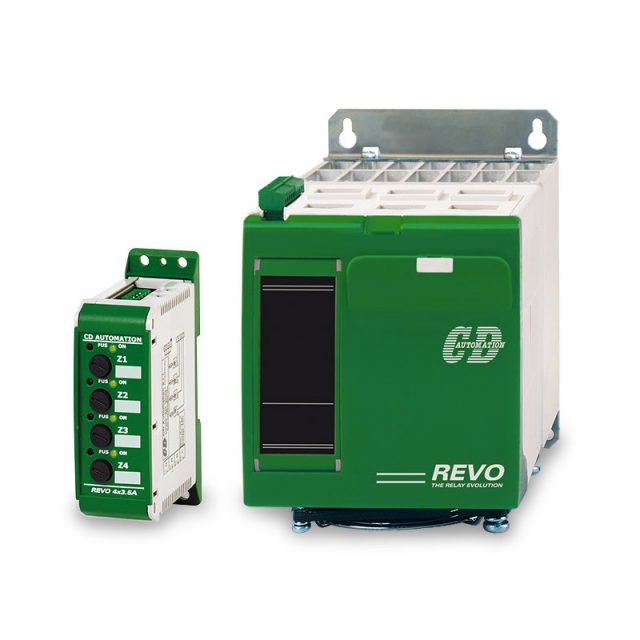

REVO Sx - Multiple Low Power Solid State Relay
- From 3.5 to 7A
- Max. voltage 240V or 480V AC as option
- From 50 to 90A
- Max. voltage 480V or 600V AC
- Load type: Resistance, IR Lamp long and medium waveform
- Inputs: SSR Std
- Firing mode: Zero Crossing
General Details
REVO SX
Multiple Low Power Solid State Relay from 3.5 to 7A
- This unit is available in three version
- Each unit includes Fuse and Fuse Holder, thyristor and heat sink with its own Firing circuit
- Zero Crossing Firing
- Max. voltage 240V or 480V AC as option
- Insulated input
- LED for On Off Status indication
- LED for fuse failure indication
- Plug in connection for auxiliary and power terminations
- Small dimensions Width: 36mm, Depth: 86mm, Height:121mm
- Din rail mounting or screw mounting
- Can be used in applications with many zones and low power as thermoforming, blow Moulding and Hot Runners.
REVO SX
Multiple Low Power Solid State Relay from 50 to 90A
- Available in different type with two or three independent channels
- Currents: 50, 60, 75 and 90A
- 480V or 600V Max Voltage
- Zero Crossing Firing
- Each unit includes two or three Integrated Fuses & thyristors with its own firing circuit, they share a heat sink
- Isolated input
- Screw mounting
- Can be used in applications with many zones in combination with REVO PC series to get power synchronization, communication, measurement and diagnostic
Documentation
REVO SX – Documentation
Catalog
Manuals
User Manual Revo SX Solid-State Relay 4×3,5A / 3×4,5A / 2x7A (M-RSX-3,5-7)
3D Models
Code / Size

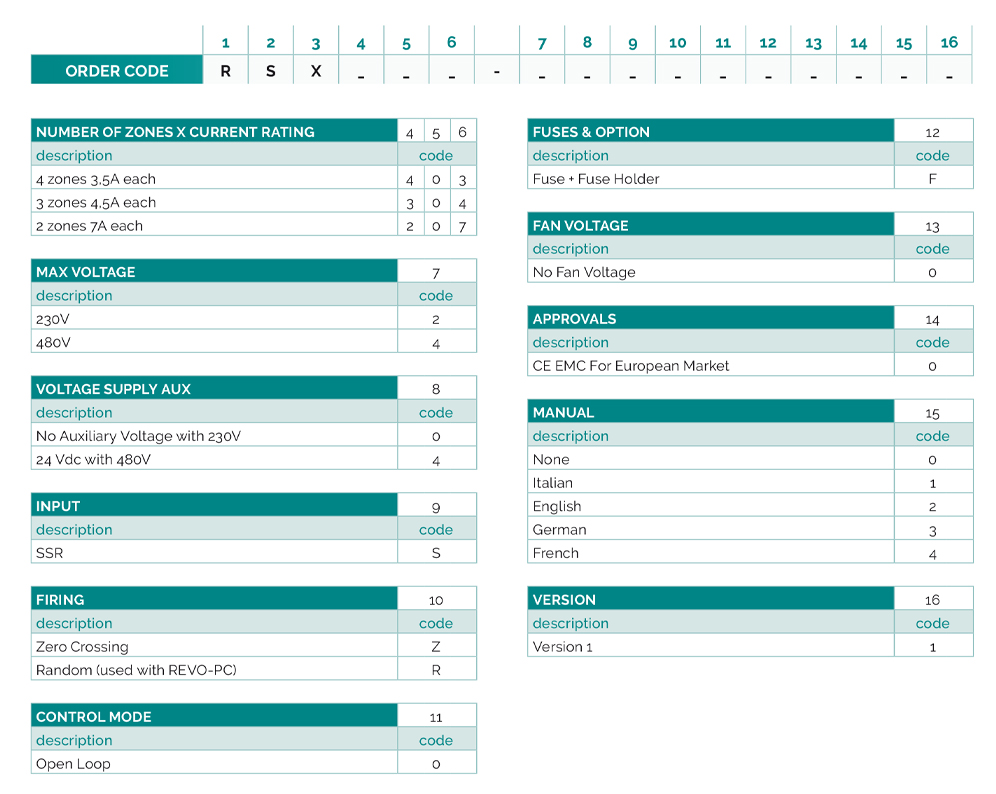

REVO SX from 3,5 to 7A – Order Code

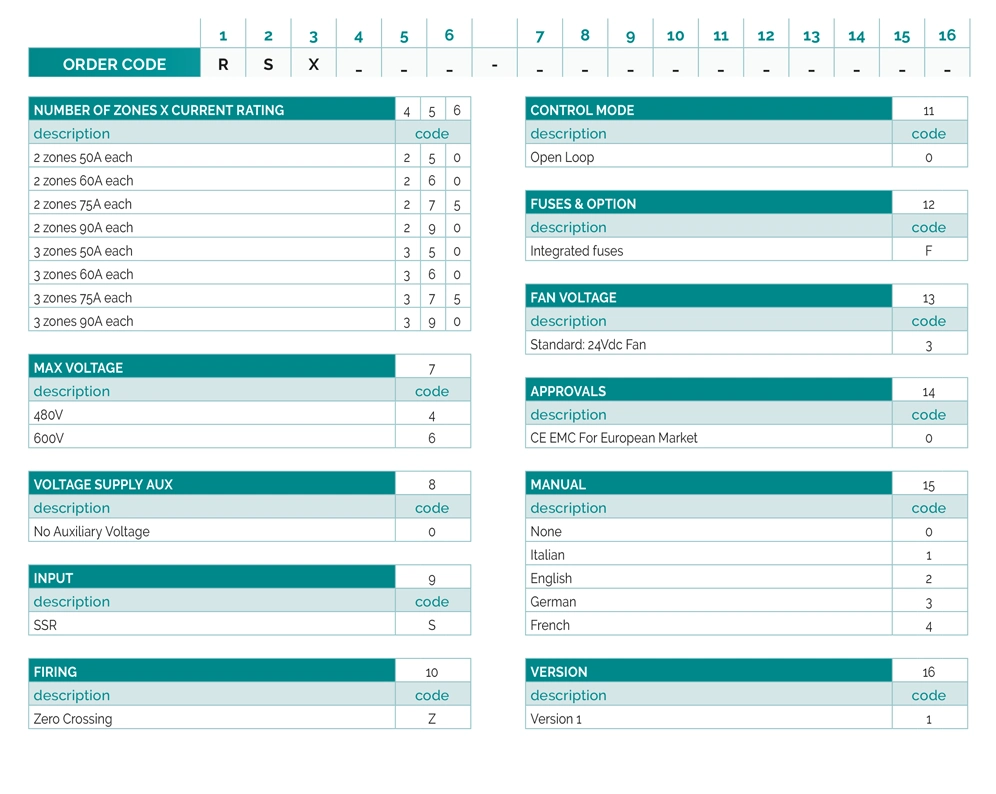

REVO SX from 50 to 90A – Order Code

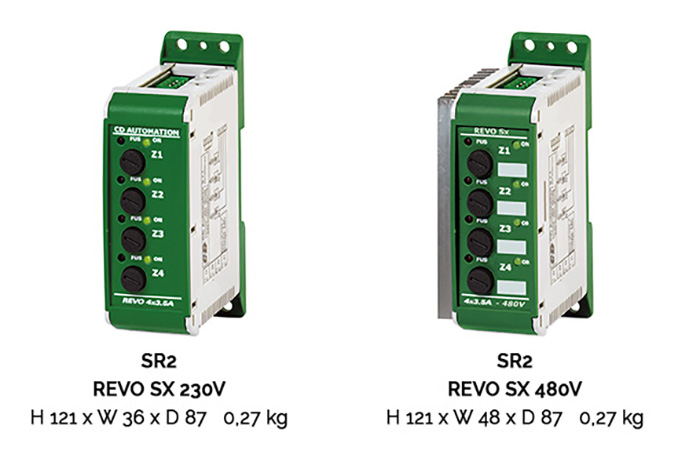

REVO SX from 3,5 to 7A – Size and Dimensions

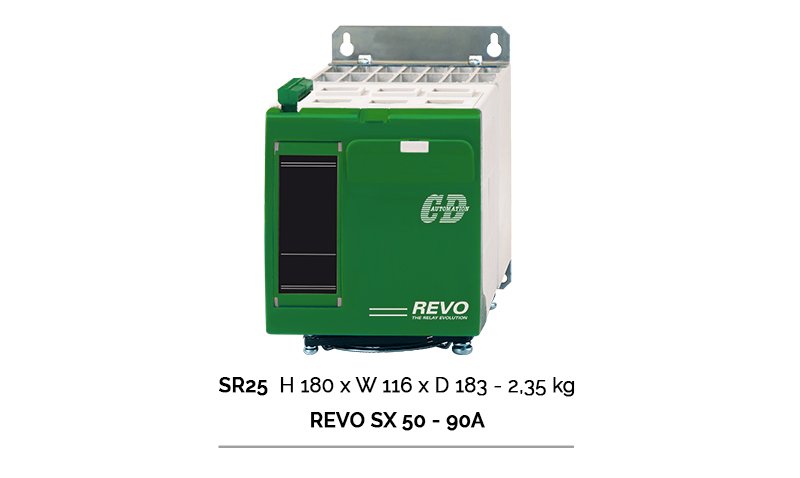

REVO SX from 50 to 90A – Size and Dimensions
Diagrams

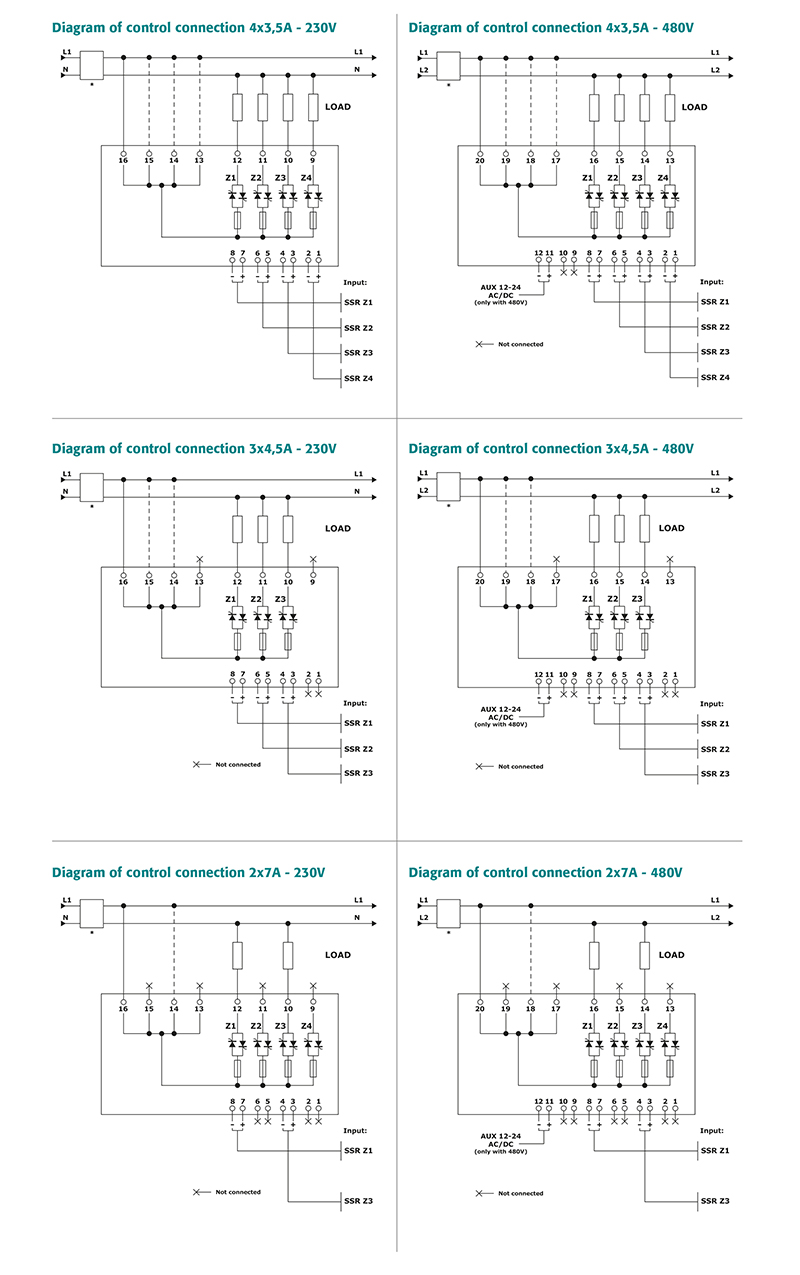

REVO SX from 3,5 to 7A – Diagrams
REVO SX from 50 to 90A – Diagrams
