REVEX 2PH

Technical Specification

Load type: Normal Resistance, Infrared Short, Medium and Long waveform
Inputs: 4:20mA, 0:10V, SSR and ModBus as std.
Firing mode: Burst Firing, Zero Crossing
Control Mode: Voltage, Current and Power or V2 and I2
Communication: RS485 port. RTU Modbus® Protocol
USB: Port integrated for configuration in safety mode (No Load and Auxiliary Voltage needed) Unit Powered Through USB
Approvals: Comply with CE+EMC / EAC
Dual Current Limit: For peak and RMS value

Option

All options are shown below with the relevant model code
HB Alarm to diagnose partial or Total Load Failure and Thyristor Short Circuit

Categories: REVEX Family, Three Phase (2PH) 2-Leg

General Details
SAVE MONEY
Code / Size
SW / Comm
Documentation

General Details

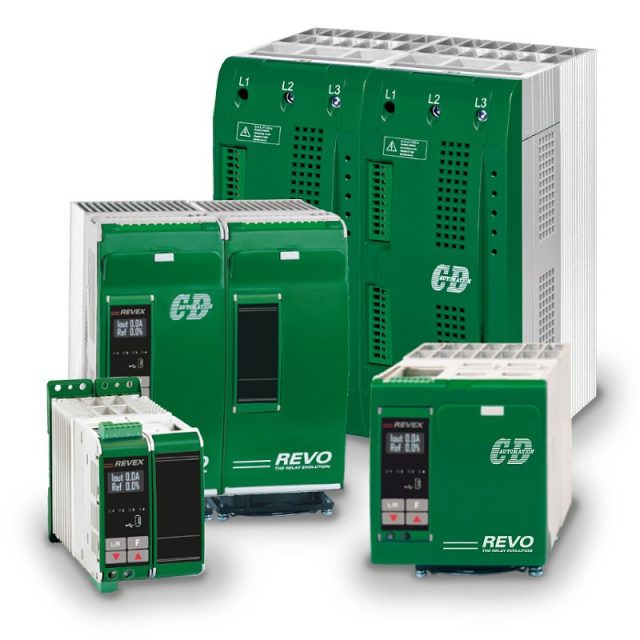

REVEX 2PH

The REVO on demand – Innovation in Power Control

REVEX 2PH is a fully configurable three phases power controller. If you don’t need features, delete them, so you’ll get an immediate cut on the cost of the unit.

Input signal in digital mode, no link jumpers inside
Firing mode: Burst Firing, Zero Crossing
Voltage, Current and Power or V2 and I2
Communication RS485 with Modbus® protocol std.
Two Analog input
Two Digital input
USB port to program REVEX, should you ever need to re-program from your ordered configuration
With the units already programmed you can simply switch On and Go
Save money and time straight out the box without the need to read a long manual
Save money with REVEX and only pay for functionality you need

SAVE MONEY

REVEX 2PH – Choose an Option to save money!

Select an option to eliminate what you don’t need. Build your cheaper solution selecting one of the following options

Note:
N option you want removed
Y It serves my project
(*1) Full price includes Fuses on all sizes with exclusion of 30-35-40A units

REVEX THE POWER CONTROLLER ON DEMAND

REVEX offers total software and hardware flexibility

Available in a multitude of configurations:

• 16 different Modes for 1 Phase Units
• 8 different modes for 2 and 3 Phase Units

REVEX: superb flexibility in software and hardware

• Build your unit in line with Process Demand
• Typical examples shown below
• Field Bus available
• Modbus communication as standard

1 Phase Power Control units in 30, 35 & 40A sizes with and without front panel display.
Version without display can be programmed via the USB port.

Shown are 1, 2 or 3 Phase Power Control units in 60 and 90A sizes.

Available with or without fuses on the 60A and 90A units.

Code / Size

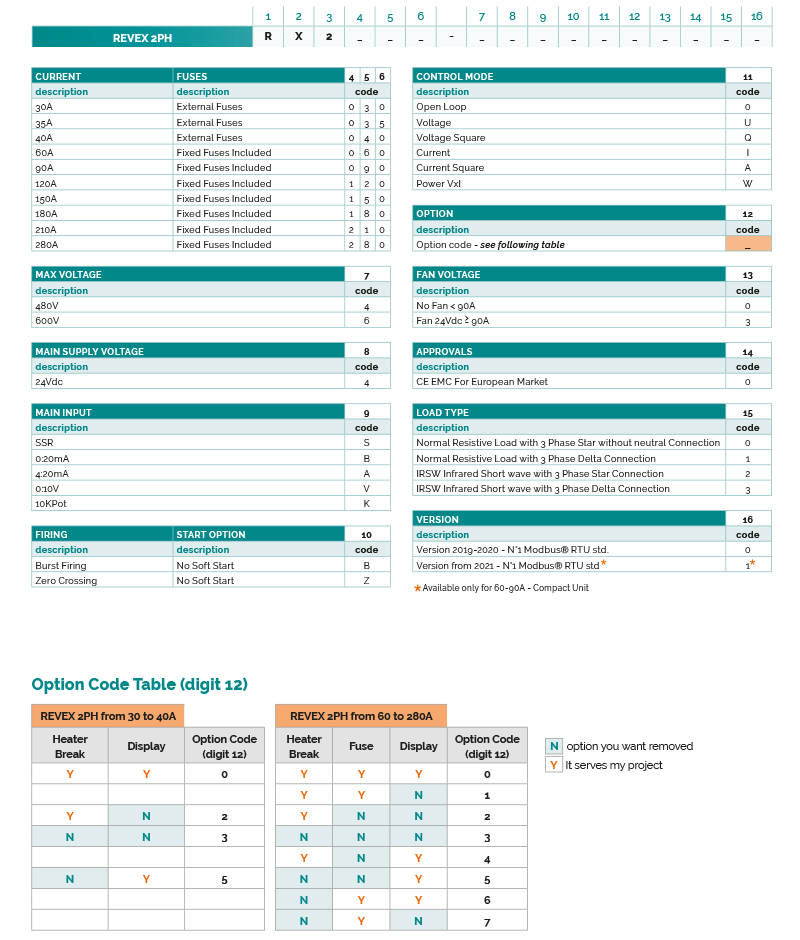

REVEX 2PH – Order Code

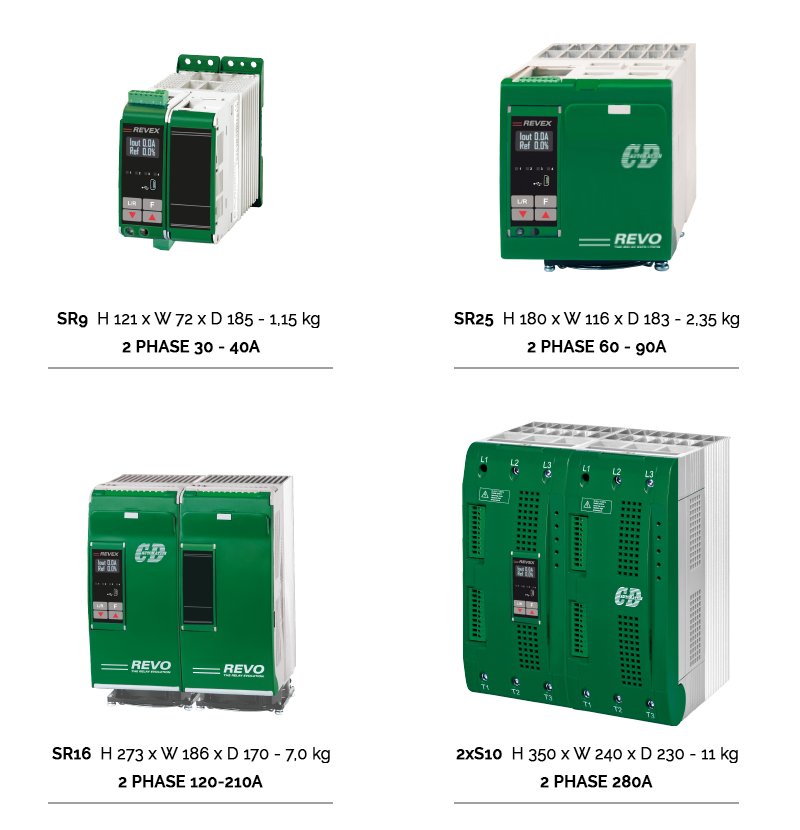

REVEX 2PH – Size & Dimensions

SW / Comm

Now available Siemens TIA Portal Libraries. Click here for more info.
*only for RS485 connection

Free Software to configure REVEX Unit:
The configuration is done via a normal USB 2.0 cable – male A type to male Micro-B and through a free configuration software.

The USB port on the front of the unit allows the configuration of REVO C in a simple and safe way since the unit is powered by the USB port itself (load and auxiliary voltage not necessary).

Download Configurator Software

Fieldbus Manuals:
Manual for REVEX-Profinet
Manual for REVEX-Profibus

Files GSD:

Download PROFIBUS GSD file

Download PROFINET GSDML file

FAST TUNE

The all new powerful Thyristor Configurator Software allows
you to configure all CD Automation products quickly and easily by using the FAST MODE. Simply select your application and the load type picture appears automatically, providing a list of suggested parameter settings. Depending on your application requirements, you can accept or make manual adjustments and when ready, download direct to the thyristor unit.

TEST UNIT

The TEST page is very useful when installing & commissioning
CD Automation products as well as finding process issues or fine tuning at a later stage. You can read, write, enable and disable key values and parameters to test your load. Examples include; reading voltage, current and power values, or current limit status, changing input types between analog or SSR, control (feedback) modes V, I and VxI, or select firing types half cycle, single cycle, burst firing, delayed triggering, phase angle and soft start. The new ‘Load Analyzer’ (a small oscilloscope) can be activated from this page, see below.

LOAD ANALIZER

Provides real-time information of the output waveform, where
you can select up to 10 process variables to help the operator determine if the waveform is in line with process expectations. Also useful for trouble shooting.

PROCESS VARIABLE LOGGING
